Features

Engine PT6A-67A 1200 SHP
Propeller Hartzell 5-Blade Composite
Pressurization 6.6 psi
Avionics Garmin G1000 NXi Avionics Suite
Autopilot Garmin GFC 700 Automated Flight Control System (AFCS)
Construction Carbon Fiber
Seats 6

Loading

Max Takeoff 8,000 lb (3,629 kg)
Max Payload 2,238 lb (1,015 kg)
Useful Load 2,860 lb (1,297 kg)
Max Payload (Full Fuel) 1,100 lb (499 kg)
Usable Fuel Capacity 264 US gallons (999 L)

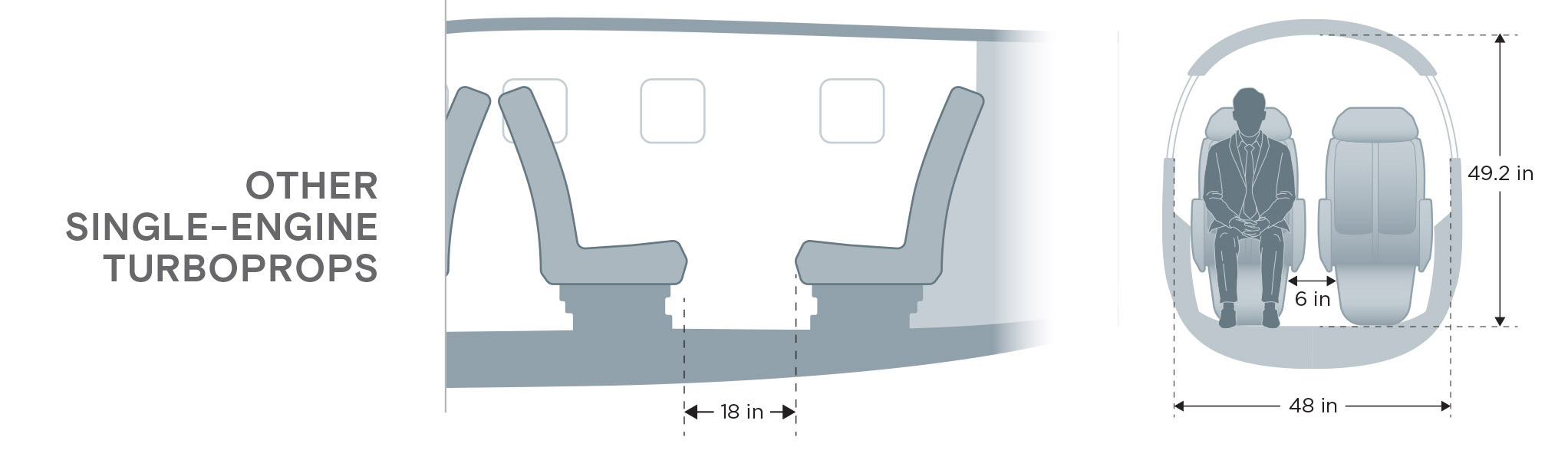

Crossview comparing the Epic E1000 GX with other single-engine turboprops, showing that the Epic is more spacious

Dimensions

Length 35 ft 10 in (10.91 m)
Height 12 ft 6 in (3.80 m)
Wingspan 43 ft (13.11 m)
Cabin Length 15 ft (4.57 m)
Cabin Height 4 ft 11 in (1.50 m)
Cabin Width 4 ft 7 in (1.40 m)
Cabin Volume 184 cu ft (5.21 cu m)
Luggage Volume 18 cu ft (0.51 cu m)

Performance

Max Operating Altitude 34,000 ft (10,363 m)
Best Rate of Climb 4,000 fpm (20.32 m/sec)
Max Cruise 333 ktas (617 km/h)
Normal Cruise 317 ktas (587 km/h)
Eco Cruise 260 ktas (482 km/h)
Stall Speed 68 kias (126 km/h)
Max Range 1,560 nm (2,890 km)
Takeoff Distance
(over 50' obstacle)
2,254 ft (687 m)
Landing Distance
(over 50' obstacle)
2,399 ft (731 m)
